MPB 20.55g

The PRONAR MPB 20.55g mobile drum screen separates components of various sizes efficiently. The principle of operation of the screen is simple, while ensuring high efficiency. The tracked chassis allows the machine to be moved at any time. The wide-opening covers enable quick and efficient replacement of screening drums with different opening sizes. The engine with the pump unit of the PRONAR MPB 20.55g screen is placed on a hinged frame, which provides excellent access to the drive unit, charging hopper and hydraulic components.

ENERGY SAVING – low consumption of diesel oil and consumables

EASY TO USE – thanks to the easy-to-use panel, the operator can quickly set the required parameters

LOW OPERATING COSTS – the production process uses the most modern technical and material solutions

POSSIBILITY OF VARIOUS APPLICATIONS – sieves waste, black earth, gravel, chips and wood waste, separates debris from the ground

DRUM COMPATIBLE WITH DEVICES OF OTHER PRODUCERS – universal design and technology of operation were used

Specification
Mobile trommel screen MPB 20.55g
Trommel dimensions (length/diameter) [mm] 5500/2000

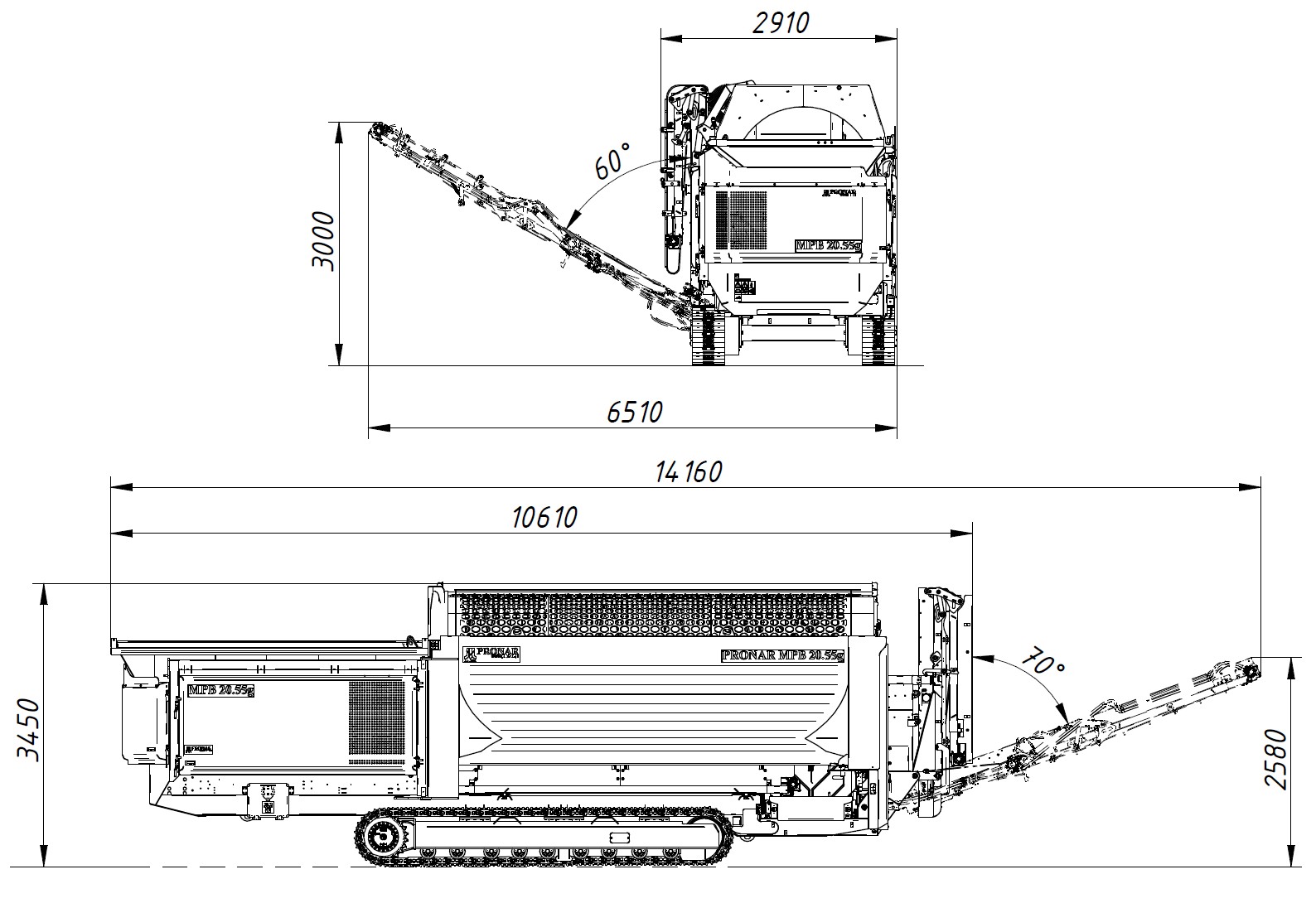

Dimensions (length/width/height) [mm] 10610/2920/3510
Weight [kg] ~20000*
Max trommel rotational speed [rpm] 25
Effective sieve surface [m²] 29,8
Loading height [mm] 2700
In-Feed hopper capacity [m³] 6
Engine CAT 3.6l, 90 kW (122 HP) Stage V/Tier 4 Final
Deutz 3.6l 90 kW (122 HP), Stage V/Tier 4 Final
CAT 3.6l, 90 kW (122 HP), Stage 3A

* Weight depends on the specification of the individual piece and may be higher
